AIRNERGY 14.4V 20.5Ah NMC Battery
€ 349,00
UPDATE 12/08/2024: BACK IN STOCK!
One of the latest developments in batteries is Lithium Nickel Manganese Cobalt Oxide (LiNiMnCoO2) or in short NMC. This is the most versatile lithium chemistry. It combines good safety with good lifetime. Furthermore, by playing with the mix of nickel and manganese, the result can be a cell with high power or with high energy and low weight.
In gliding avionics applications the current and power are relatively small compared to batteries for e-bikes or handtools. Our goal is to get the highest capacity. A Japanese manufacturer of NMC-cells, SANYO, produces a cell with 12-13Wh per cell. Furthermore the variations between cells are very small. When these cells are combined with a high-quality Battery Management System (BMS), the normal cycle life of 500-800 is raised to over 1500 cycles, which nearly equals the longevity of LFP (2000 cycles).
The result is the 14.4V NMC battery of 20.5Ah in a standard battery housing. The battery has a minimum guaranteed energy content of 295Wh or 20.5Ah, in a yellow case, so it is easily distinguished from other chemistries. Compared to LFP the new NMC battery has more than double the energy, and about four times the energy of lead-acid.
What it means in short:
Double energy capacity compared to LiFePO4.
Price versus energy content is much better.
Lower weight than LiFePO4.
Equally safe as LiFePO4.
Similar life expectancy (>1500 cycles).
Remember when LiFePO4 was the new “wow”? LiNiMnCoO2 is the next “WOW”!
Which cells do you use?
We use Japanese SANYO NCR18650GA cells. It’s not a secret. We’d like to shout it to the world: we use quality cells! No unbranded dodgy cells which only last a few cycles…
We buy them straight from the European distributor, which results in brand-new, fresh batteries which we test and spot-weld ourselves. Another supplier used LG MJ1 cells, which are a bit older, but pretty good as well. Testing and prototyping showed that our selected SANYO batteries were slightly better, although at a higher cost for us.
Which Battery Management System do you use?
We use a high quality custom made BMS rated to 40A, branded with AIRNERGY. We partnered up with a Hong Kong based company to build a BMS system which is just perfect for us; no compromises. This results in a safe and efficient battery with many safety features like a (conservative) over-discharge protection (11.2V), over-charge protection and internal balancing of the individual cells which results in a long lifespan.
Spot-welded you say?
Yes, we spotweld and test our own AIRNERGY batteries since 2014. Back in the day it started off with specialized, custom made high capacity NiMH and LiFePO4 tail-batteries for ASG29’s, Ventus 3’s, etc, and have built hundreds of batteries since… We use 100% nickel strips, and in some places double thickness to bring the resistance and power losses down to a minimum. Our batteries are safely insulated with flame/heat resistant Kapton tapes, and are protected from vibrations where needed.
Specifications:
Nominal output voltage: 14.4V.
Guaranteed capacity at 2A discharge current: 20.5Ah.
Energy capacity: 295Wh.
Full charged voltage: 16.8V.
Safety cut-off voltage: 11.2V.
Maximum continuous current: 20A.
Pulse current (<30 seconds): 30A.
Maximum charge current: 20A.
Recommended charge current: 2-5A.
Dimensions: 151 x 65 x 96 mm (including terminals).
Weight: 1385 grams.
Terminal: Faston 6.3mm.
Warranty: One year.
To protect the battery from over-charging and over-discharging the battery is equipped with a very high quality, custom made for AIRNERGY, internal 40A Battery Management System (BMS). The BMS also takes care of the balance between the individual cells.
Storage and safety instructions:
If not in use for periods longer than 2 months, discharge to 40% / 14.0V and store at a cool temperature.
Charge with a suitable 16.8V Li-Ion charger only. Do not short-circuit, disassemble, puncture or incinerate.
No fuse inside. Warranty void if opened. For warranty and service contact info@MillenAir.eu.
Is 16.8V not too high?
Most modern avionics can handle input voltages well above the battery’s maximum voltage of 16.8V. Special caution must be used with certain older avionics as these sometimes have voltage limits between 15 and 16V. A diode can be installed in the power supply line of the specific device, which would result in a voltage drop of about 0.8V (up to 1.0V under load). This will ensure the input voltage will remain below the manufacturers’ specified limit. It’s not advised to install a diode in the battery’s main supply line, as all instruments would be affected by this, which may not be necessary. The diode’s maximum rated current must be equal or higher than the fuse/circuit breaker. Find suitable, ready to install diodes here: up to 3A, up to 6A.
Alternatively a DC-DC step down converter could be used, but we don’t recommend this as RF interference (noise on the radio) could be experienced.

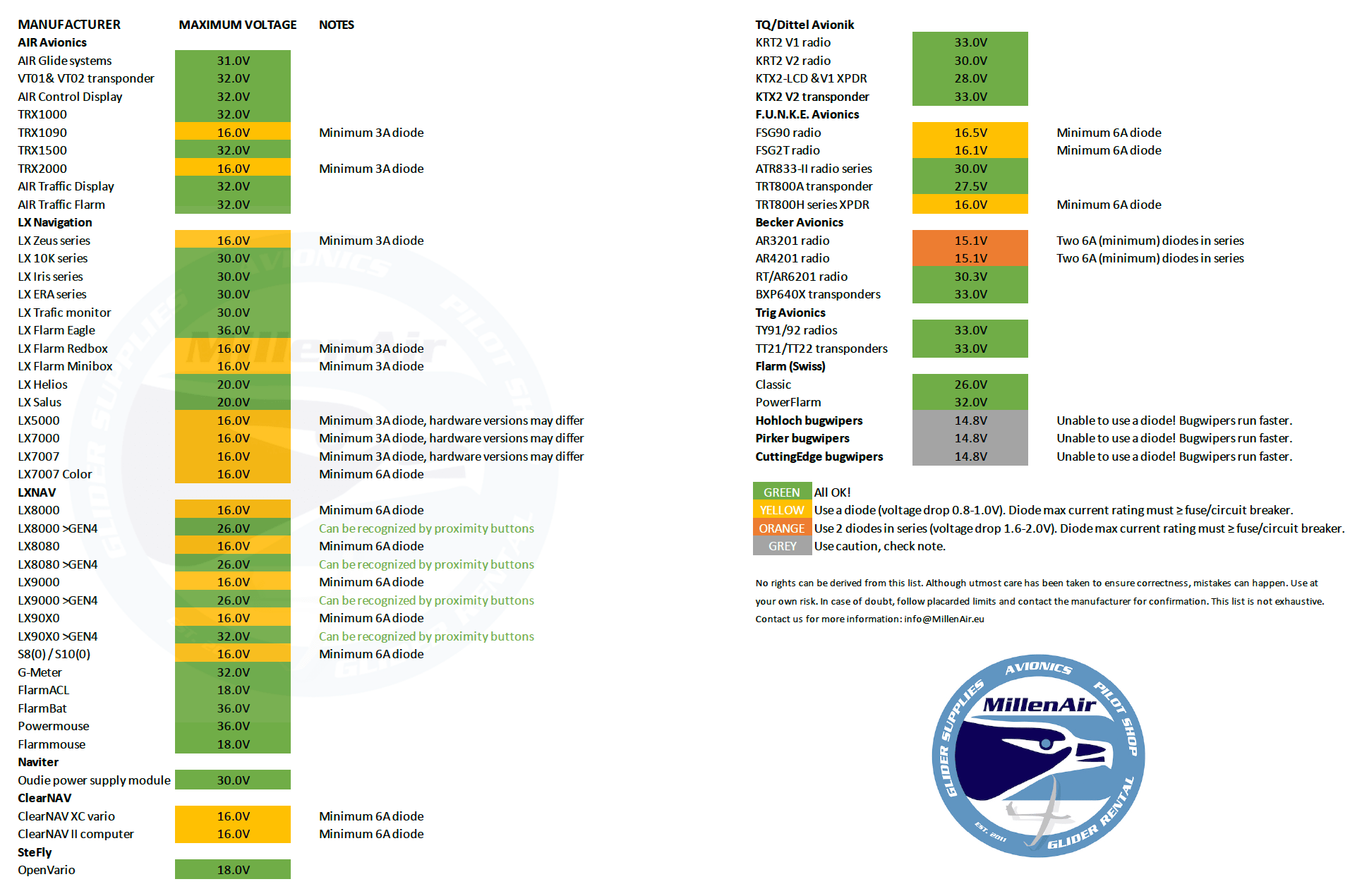

Not sure if your instruments can handle a higher voltage? A compatibility list can be found in the product images.
| Weight | 3 kg |
|---|---|
| Dimensions | 31 × 22 × 10 cm |
Brand
AIRNERGY
2 reviews for AIRNERGY 14.4V 20.5Ah NMC Battery
Only logged in customers who have purchased this product may leave a review.
Related products
Circuit Breakers
€ 44,95 – € 49,95
320Ah
Solar Equipment
€ 1.699,00
Circuit Breakers
€ 44,95 – € 49,95
Circuit Breakers
€ 44,95 – € 49,95
Battery Chargers
€ 49,95
210Ah
Solar Equipment
€ 1.599,00
NMC Batteries
€ 4,95
Batteries & Power Supply
€ 119,95
-13%
Batteries & Power Supply
Original price was: € 229,00.€ 199,00Current price is: € 199,00.
16,8V
Batteries & Power Supply
€ 399,00
Out of stock
Batteries & Power Supply
AIRNERGY NMC Tail Battery 14.4V 20Ah – Ventus 2 / Ventus 3 / Discus 2
€ 349,00
-17%
Batteries & Power Supply
Original price was: € 179,00.€ 149,00Current price is: € 149,00.
MARIUSZ RYSZCZYK (verified owner) –
Definitely recommended as a set with a dedicated battery charger.
Marc Teugels (verified owner) –
Good battery , just 1 thing , when you interrupt the charging (because one is away) the charging will not resume with the normal current and will not reach full charge . It will , when it is discharged later on , charge normally . I could probably fly 12-14hrs or more with 1 charge , but I prefer to takeoff with a fully charged system. PS used the millenair suppied special charger
[MILLENAIR RESPONSE: This is a safety feature to avoid over-charging at a too high current when the battery is already nearly full. It reduces the charging current to avoid wearing out the battery unnecessarily.]
